ATOMSTACK MR20 Infrared Laser Module 20W Fiber Laser Power 1064nm Fiber Laser Engraving Head 0.03x0.06 Point Replacement Part For Carving Metal Slate Planer Stone Glass Marble For A70 A40 A30 A20 A10 X7 S10 X20 X30 X40 PRO Laser Engraving Machine

Save $466.33

Sale price$1,399.00 Regular price$1,865.33

💐Note: Free shipping!
Order will be shipped within 24 hours and tracking number will be provided within 48 hours. Excluding holidays, US orders and European orders will be shipped from US and Germany overseas warehouse first. If the overseas warehouse is out of stock, the products will be shipped from China, to ensure the delivery time, we will choose FedEx, DHL, Ups or special line and other fast delivery methods. Immediate shipment

✅ 20W Fiber Laser Power

✅ Cut 0.2mm aluminum cards by one-pass

✅ Relief engraving and Rust removal

✅ Adaptable to all Atomstack frame structure engraving machines

💐Note: Free shipping!
Order will be shipped within 24 hours and tracking number will be provided within 48 hours. Excluding holidays, US orders and European orders will be shipped from US and Germany overseas warehouse first. If the overseas warehouse is out of stock, the products will be shipped from China, to ensure the delivery time, we will choose FedEx, DHL, Ups or special line and other fast delivery methods.

100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!

About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.

About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

We present the world's first pulsed fiber laser engraving machine with 20W and 1064nm for frame laser engraving machines


Product model: MR20

Suitable engraving materials: printed circuit board, opaque acrylic, aluminum oxide, plated and lacquered metals, mirrored stainless steel 304, opaque glass, ceramics, slate, leather.

Suitable cutting materials: thin stainless steel, aluminum and brass plates.

Optical laser output power: 20 W

Laser power consumption: 90 W

Laser wavelength: 1064 nm.

Item size: 0.02 x 0.05mm

Maximum impulse energy: 0.7 mj

Optical pulse width: 80-110 ns.

Repetition frequency: 30-60 kHz

Peak power: 7 kW

Power requirements: 24 V DC

Product Description :

  • 20W fiber laser power: The world's first pulsating fiber optic infrared laser module with a wavelength of 1064 nm and optical power up to 20 W, using a well-switched (photoelectric switch) main oscillator and MOPA (High Power Fiber Amplifier) construction.

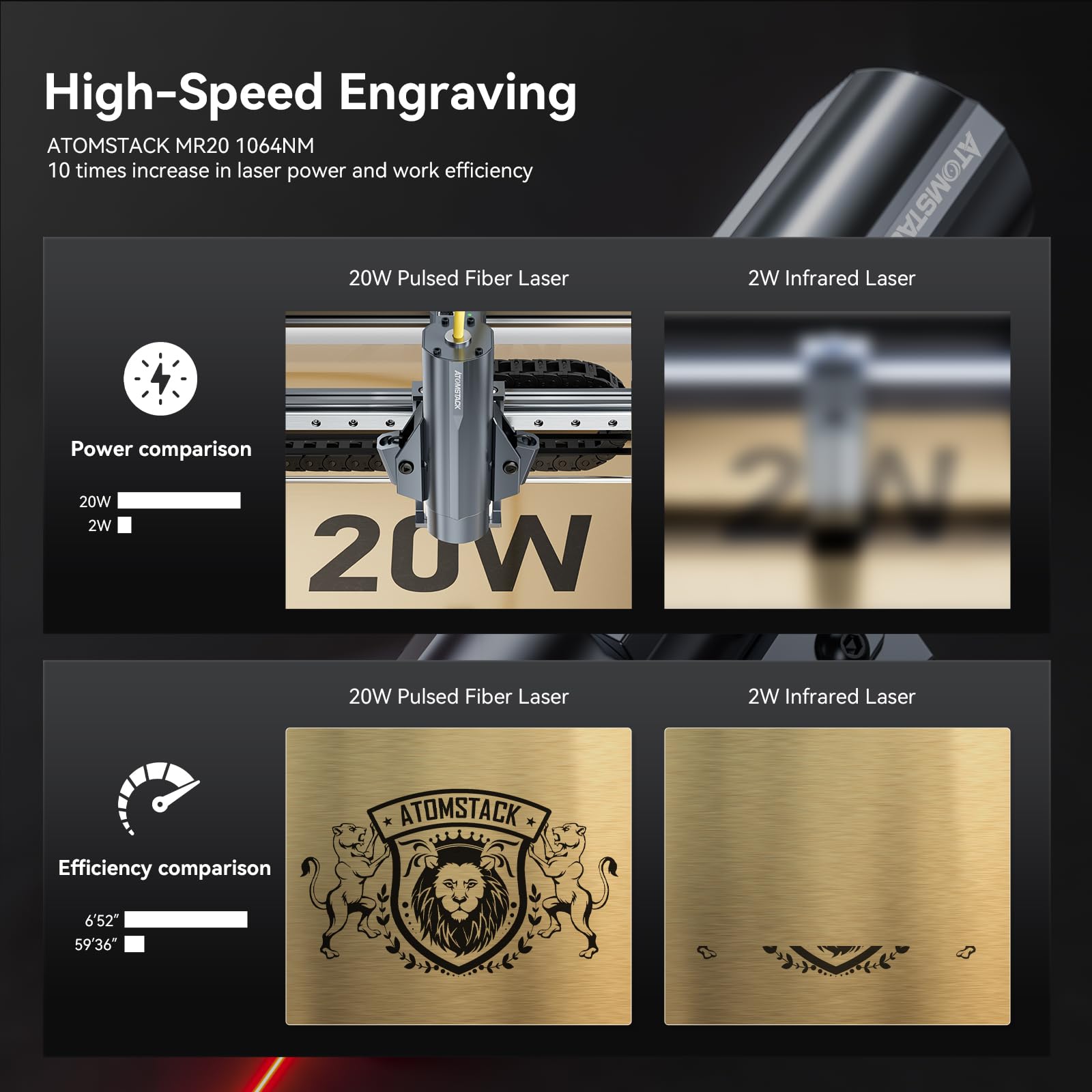

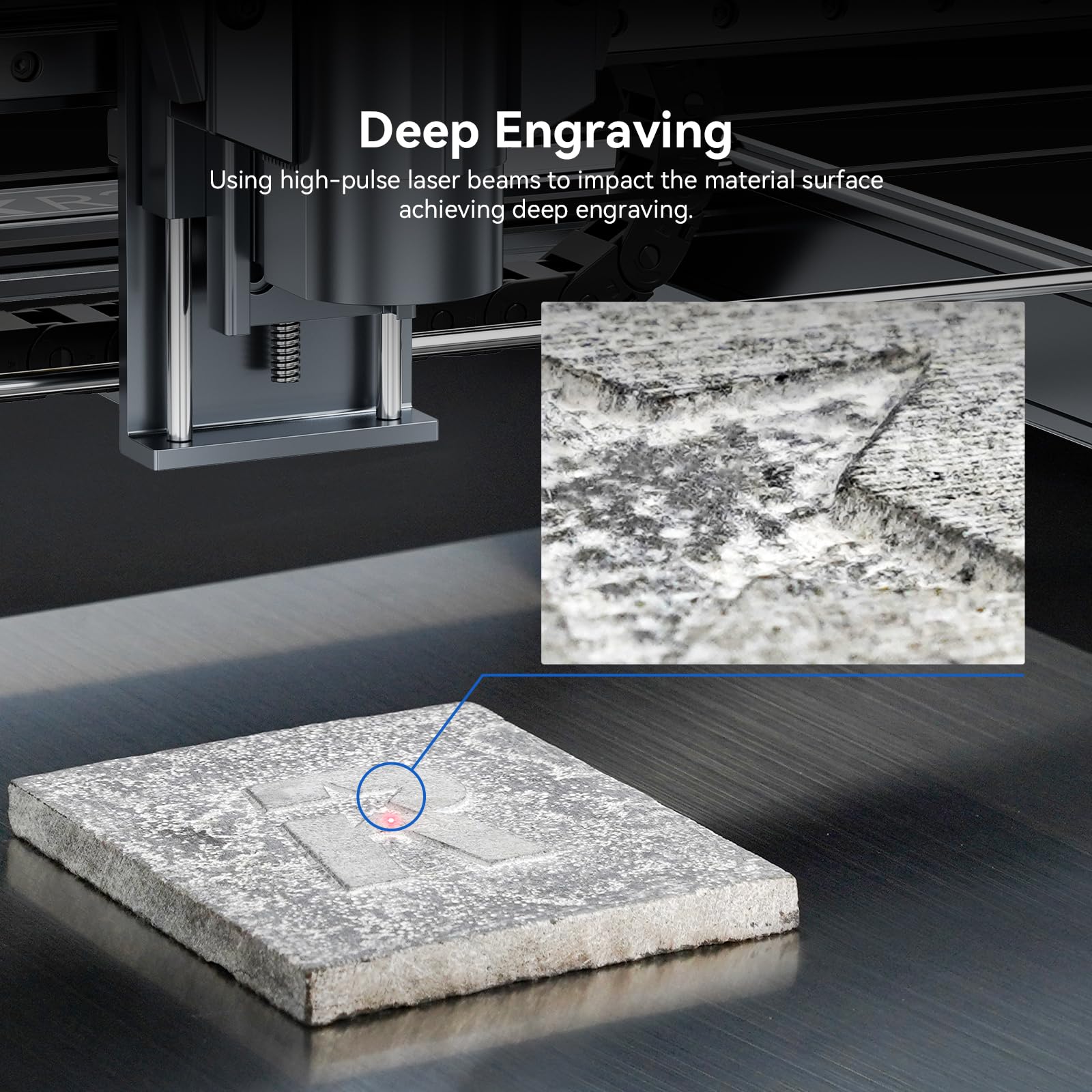

  • Multi-material application: MR20 fiber laser module can be used on all common metals (copper, iron, aluminum, zinc, silver, etc.) and high speed plastic fine engraving and on black acrylic, leather, ceramics, etc. Rock engraving; the 1064nm infrared laser is ideal for deep engravings in the clean slate plane to achieve a relief effect.

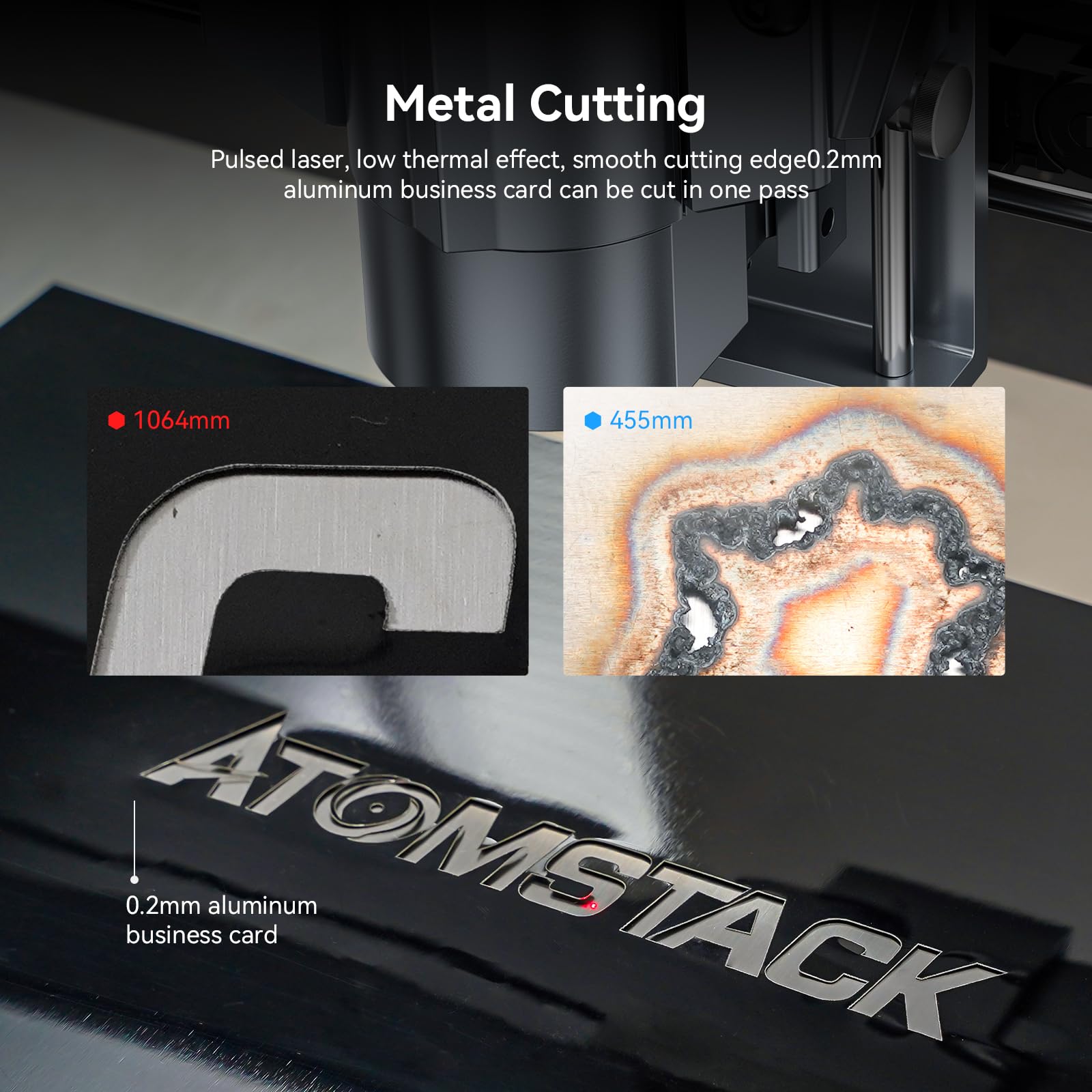

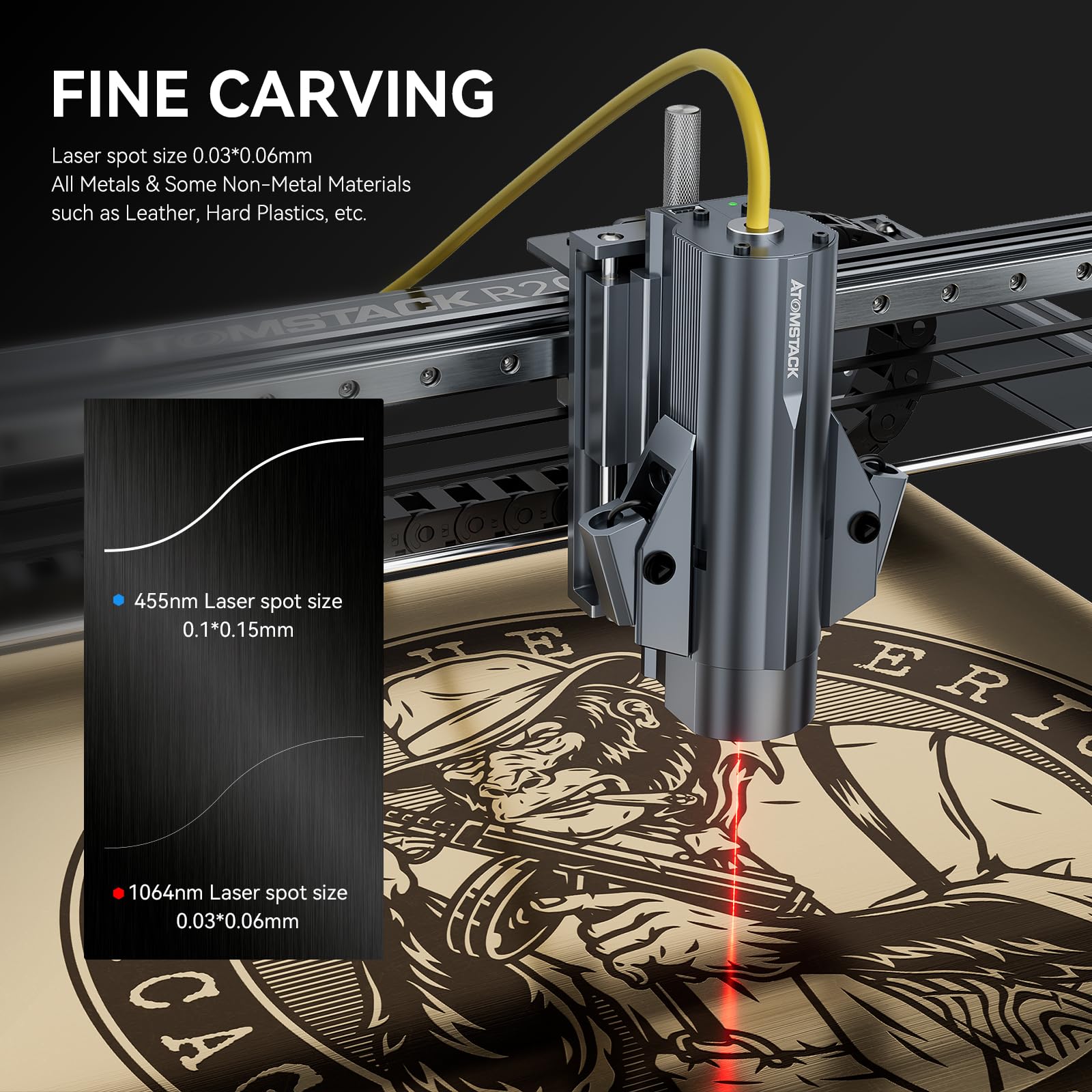

  • Metal cutting: 20W laser output power and an ultra-fine 0.03 x 0.06 tip allow the ATOMSTACK MR20 to easily cut 0.2mm thick aluminum business cards at one time and cut 0.5mm thick brass plates several times; simple focusing method with double red light, 30 seconds to easily achieve the best focus.
  • Improved operation: the specially developed LightBurn control plate for MR20 synchronizes perfectly with LightBurn software, so users can easily adjust the laser performance and heart rate. Fiber optic conduction: Using fiber optic cable for energy transfer can greatly improve energy transfer efficiency and reduce energy loss.

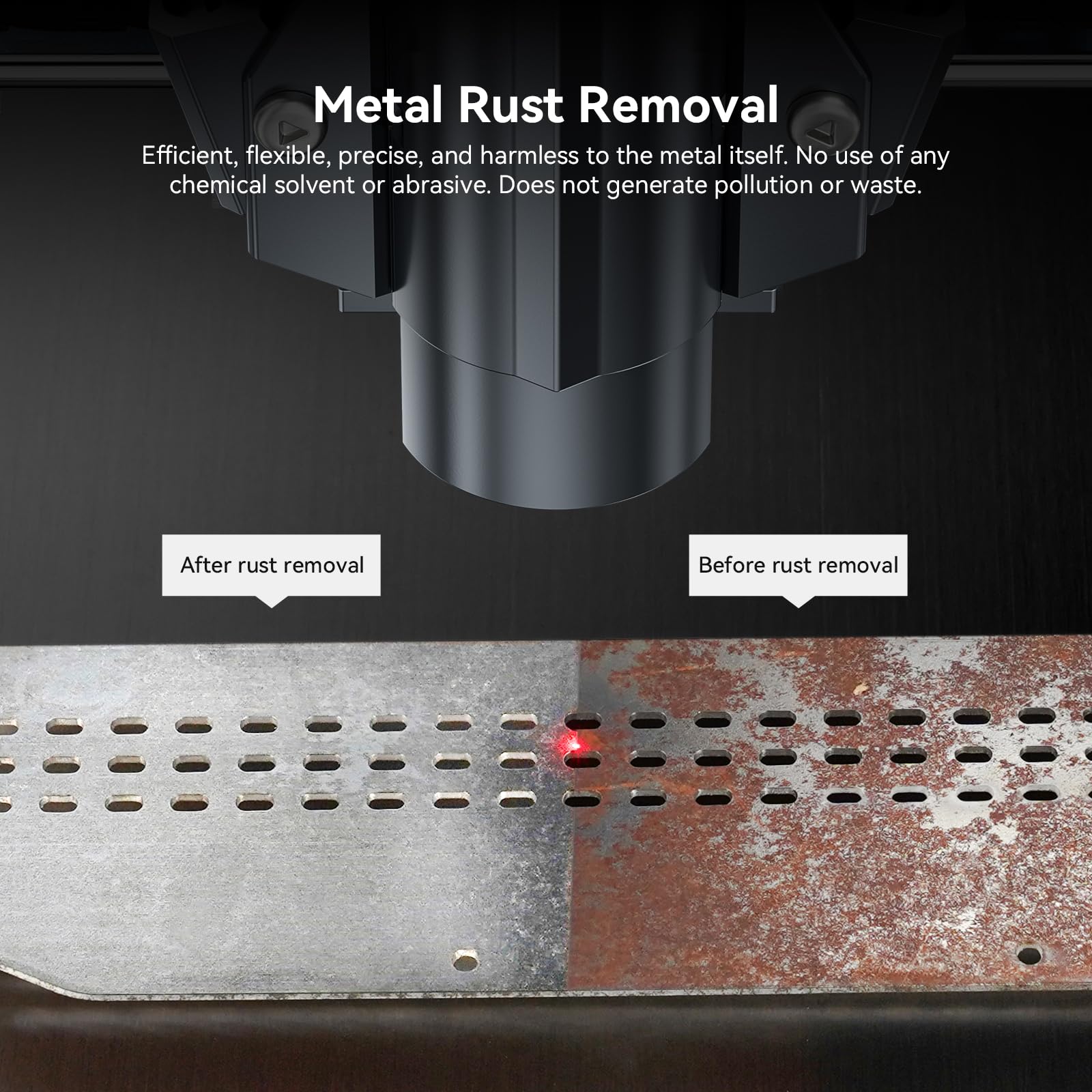

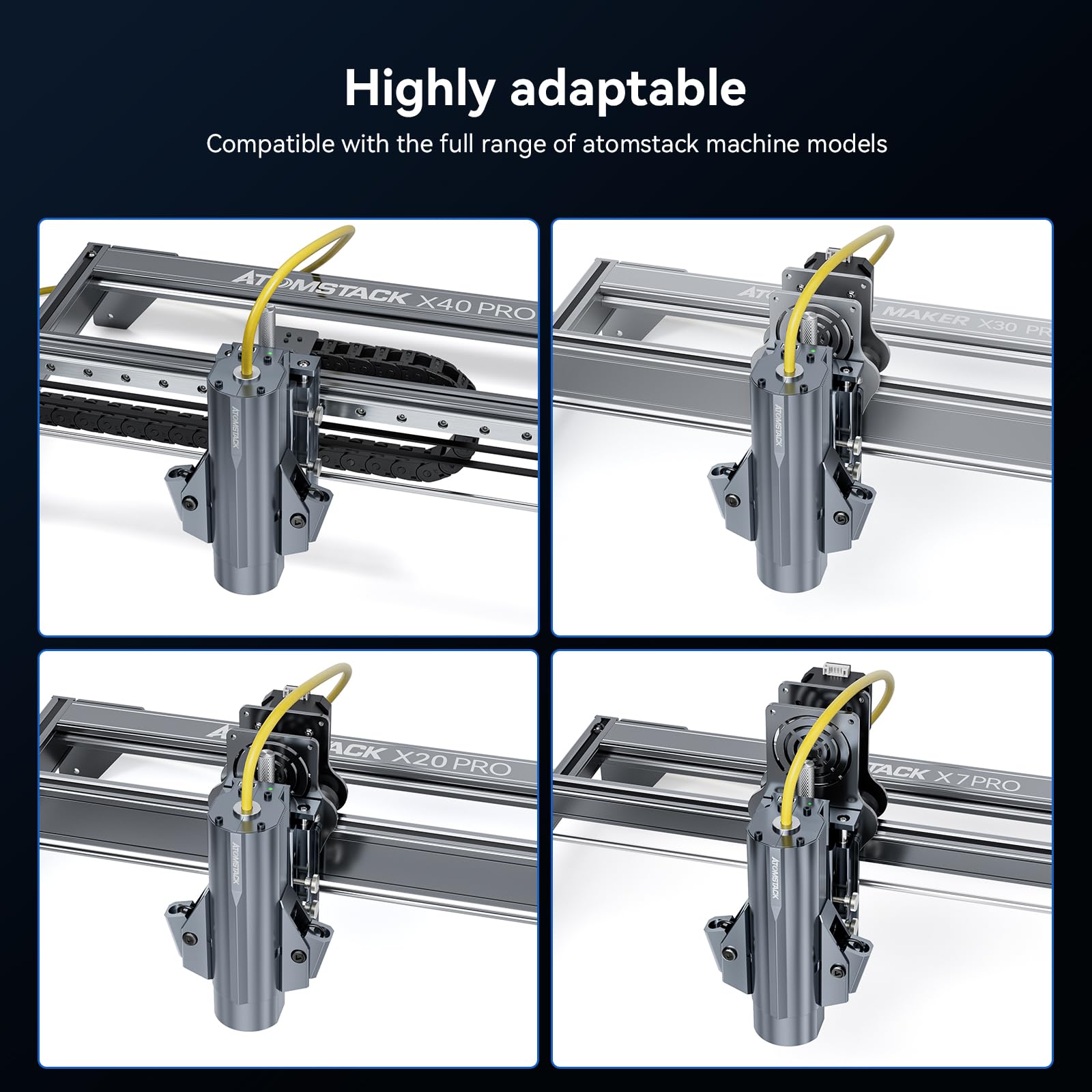

  • High adaptability: The ATOMSTACK MR20 laser with a wavelength of 1064 nm is very suitable for removing the rust layer on the surface of metals, and can quickly remove rust on the metal with laser. The ATOMSTACK MR20 module can be quickly installed and adapted to all Atomstack brand laser engraving machine frames. The working range can be extended to 850 x 400 mm or 850 x 800 mm.
