1. Larger working area: 850*400mm maximum working area without the extension bar, meets 99% of laser engraving/cutting scenes.
2. More stable structure: Different from extending the Y-axis, Atomstack S20 Max uses the X-axis extension solution with better structural stability, which makes the S20 Max work stably in a larger working area and engrave/cut lines smoothly without jittering.
3. Tank chain control: Atomstack S20 Max uses the tank chain which is never used in other models before, so that machine can work more stable and run smoothly without tangling.

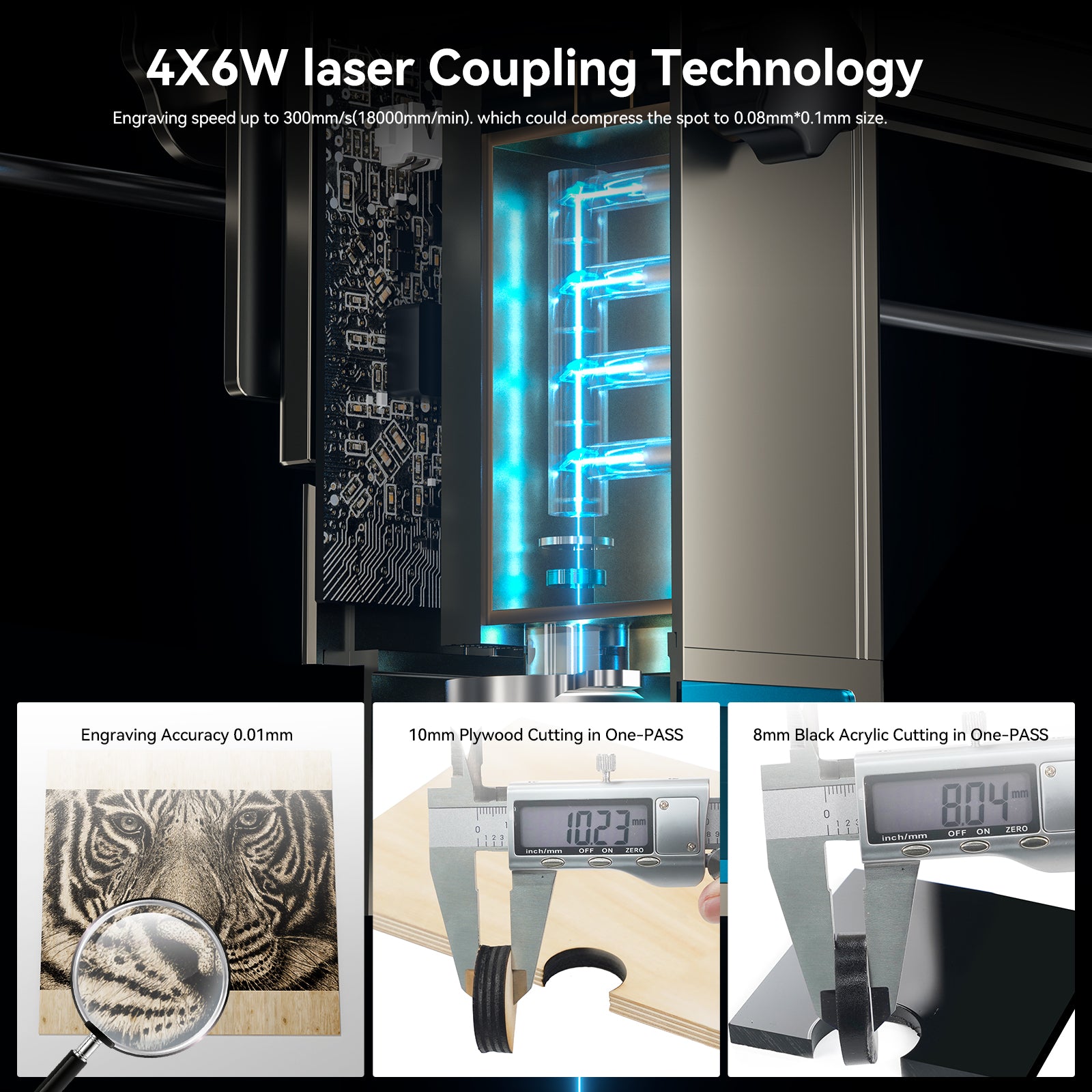

4. Super high power: works with 20W laser module. The latest four 6W laser coupling technology can cut 12-15mm paulownia, 8mm black acrylic, and even 0.05mm stainless steel sheet at one time. With autofocus design, Atomstack A20 Max can auto-focus in 10s.
5. The newly upgraded self-developed 32-bit motherboard: built-in 256-bit color scale, which makes the engraving work more accurate and has a higher contrast ratio. Your engraving work could be colorful!

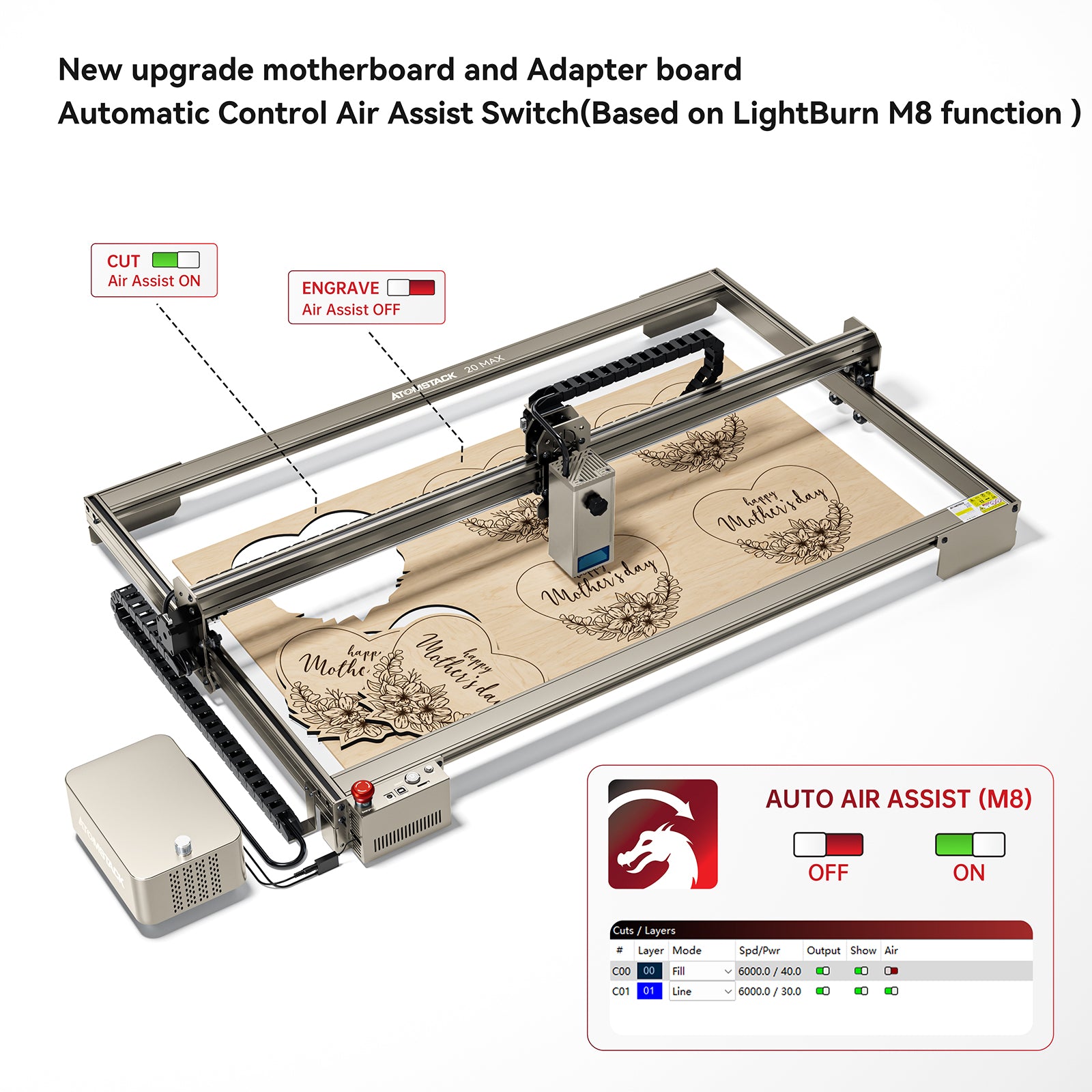

6. Equipped with F30 Pro air assist kit as standard: the cutting capacity is greatly enhanced, and at the same time, the cutting accuracy and cutting quality can also be greatly optimized.
7. New non-clogging laser module: the new S20 laser module has a built-in tool-free focus module and a built-in air assist system. There is also a patented double-layer poly air hood design, which can ensure long time use without blocking the head and contaminating the lens, greatly improving the life of the laser.
8. Atomstack self-developed APP: Atomstack self-developed APP has been launched in Android application markets and the Apple APP store (you can also scan the QR code of the manual to download). It is small in size and multi-functional, bringing a new control experience. Come and have a try.
9. New eye protection design: The filter glass protects your eyes very well, filtering 97% of ultraviolet light, you can watch laser engraving/cutting without wearing goggles. Reduce your goggle expense and the inconvenience of wearing goggles.
10. Easy to install: The all-aluminum anodized structural design makes the machine stronger and more durable, and at the same time improves the accuracy of engraving. The installation can be completed in generally 20-30 minutes.
11. High compatibility: the machine is compatible with various softwares, such as LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10, and also supports Mac system (LightBurn), file format supports NC, BMP, JPG, PNG, DXF, etc.
12. 20W upgrade compressed spot technology. Laser spot size 0.08mm*0.1mm. Engraving speed up to 300mm/s(18000mm/min).
12. One-piece rod: the machine uses a one-piece rod instead of a combined coupling. The stepper motor and screw rod are integrated, which makes the laser movement more accurate and the coupling more durable.
14. Laser temperature up to 2400℃.
15. Safety protection: configured with an emergency stop button. if there is an unexpected situation, stop the machine running at any time, and equipped with a reset switch and limit switch.
2. Engraving size: 850*400mm
3. Engraving materials: wood, bamboo, cardboard, plastic, leather, PCB, aluminium non-reflective plated and lacquered layers of metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
4. Cutting materials: cardboard, non-woven fabric, wood, plywood, black acrylic, thin plastic sheets, sponges, metal such as aluminium and stainless steel;
5. Machine Power: 130W
6. Laser Power: 90W
7. Laser output optical power: 20-21W
8. Laser wavelength: 455±5nm
9. Engraving accuracy: 0.01mm
10. Focusing mode: autofocus
11. Laser protection shield: The laser has a protective shield to protect the user's eyes without the need for additional eye protection. Also prevents pets from scratching the laser spot
13. Supported file formats: NC, BMP, JPG, PNG, DXF.
14. Data transfer method: USB connection
15. Power supply: 100-240V AC, 50/60HZ Output: 24V 5A
16. Certifications: CE FCC RoHS FDA PSE
S20 Max engraver packing list:
1 x Rear support beam
1×Front support beam
1×F30 Pro double pump air assist
4×foot pad foam
1×Fixed focus film
3× foot support
● When operating the laser engraver, please install the laser protection cover; goggles are required when not installed.
● Do not touch the laser with your hands, as this may burn them.
● Please avoid strong shocks to the machine.
● The use of this product by children under 14 years of age is prohibited; children over 14 years of age require adult supervision.
● The laser must not be applied directly to any mirror reflecting objects, this may cause injury to the operator or burn the laser.
